E120 - Q. Can I use more than one pair of loudspeakers with E120?

E120 - Q. Can I use more than one pair of loudspeakers with E120?

Answer:

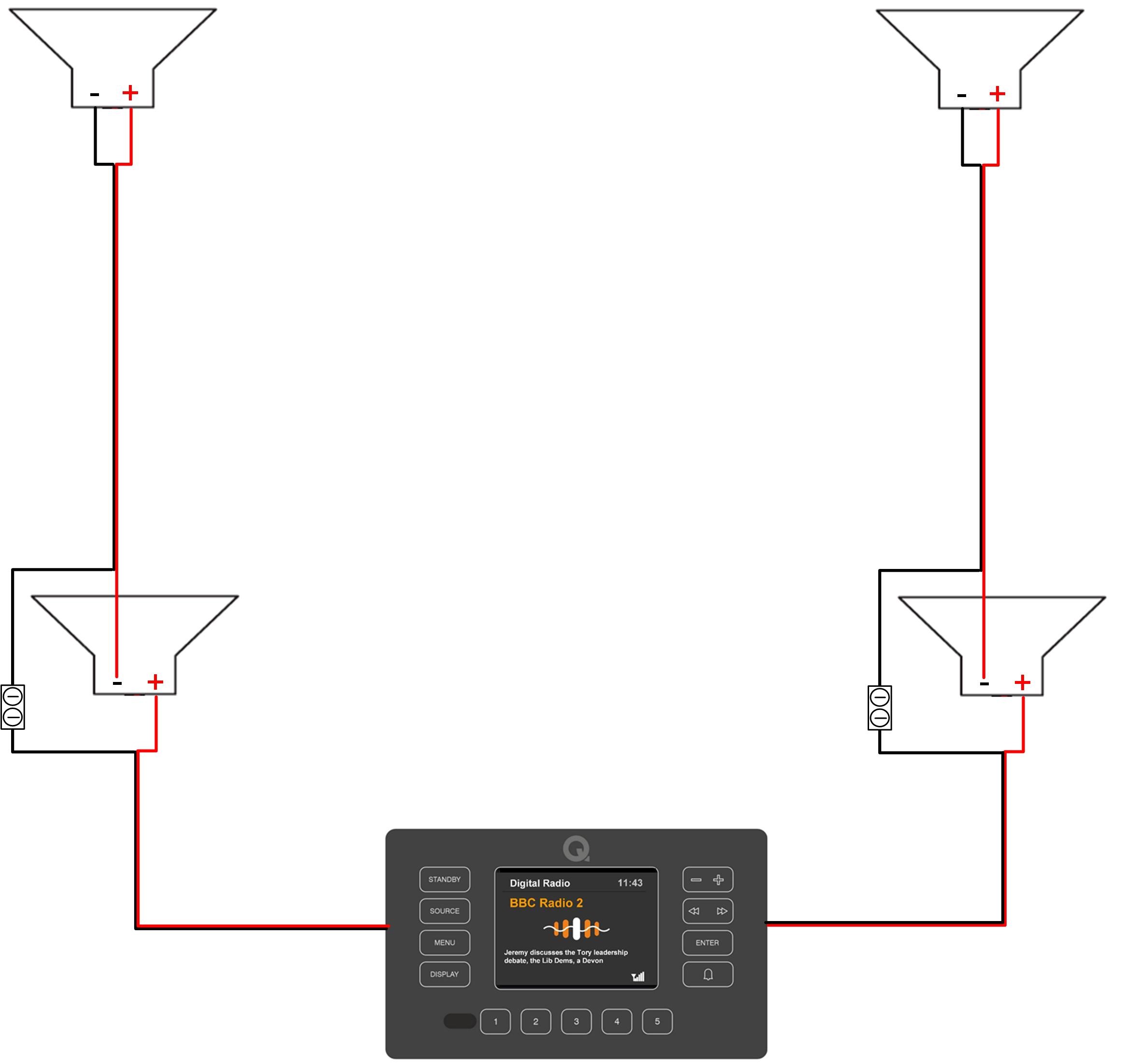

E120 has been specifically designed and tested to support powering two pairs of recommended QI65C ceiling speakers, or other 6-8 ohm rated speakers. You should wire the two speakers in series as shown in the diagram below to ensure a reliable great sounding audio system.



E120 - Speaker wiring (series)
